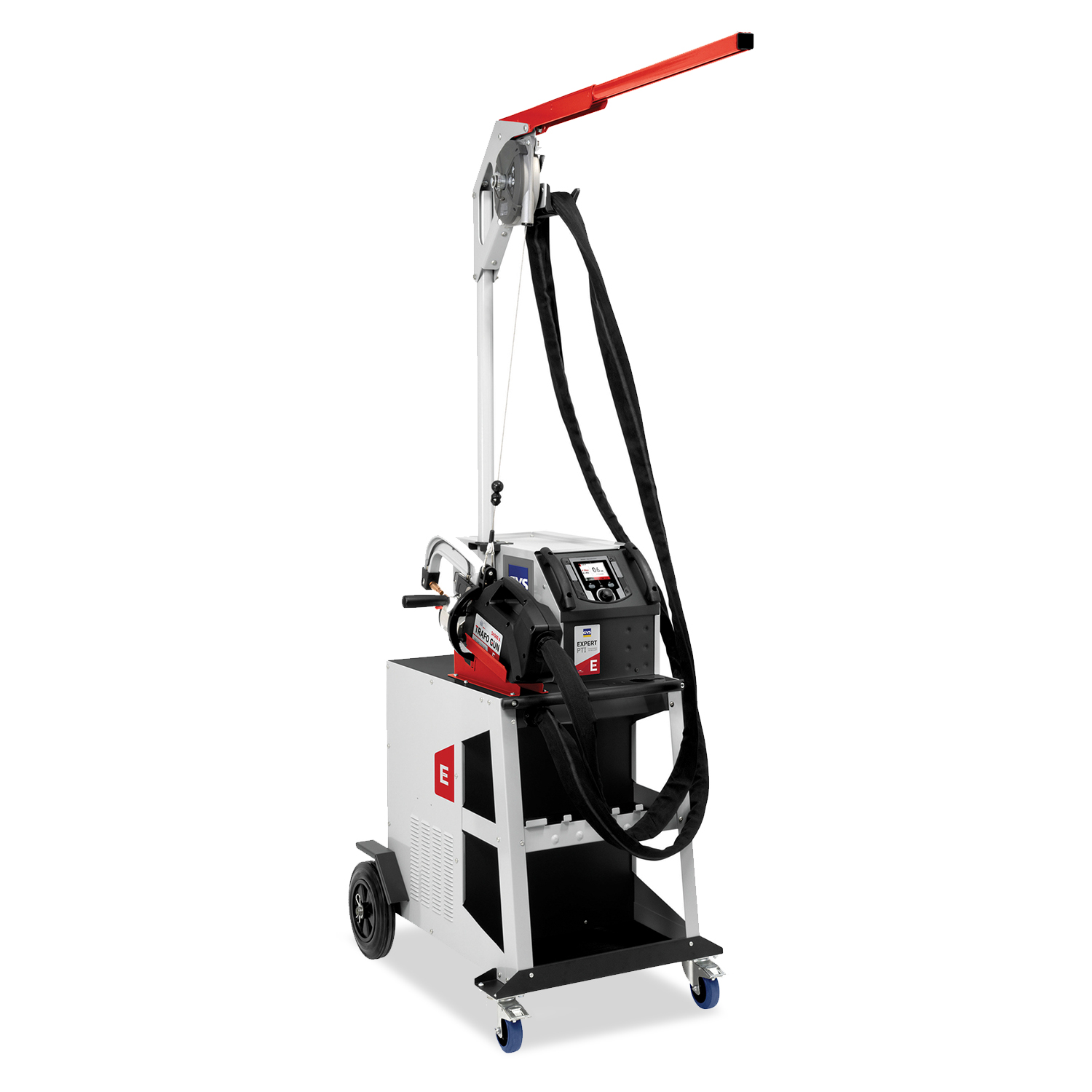

GYSPOT PTI EXPERT COMPLETE (G1 +G2+G3+G4+G9) - 400V
The GYS GYSPOT PTI EXPERT (5M) - 400V is a high-performance automatic spot welder designed for professional automotive body repair. This advanced machine delivers a maximum welding current of 14,500 A, making it capable of welding all types of steel used in modern vehicles, including HLE/THLE, UHLE, and Boron steels.

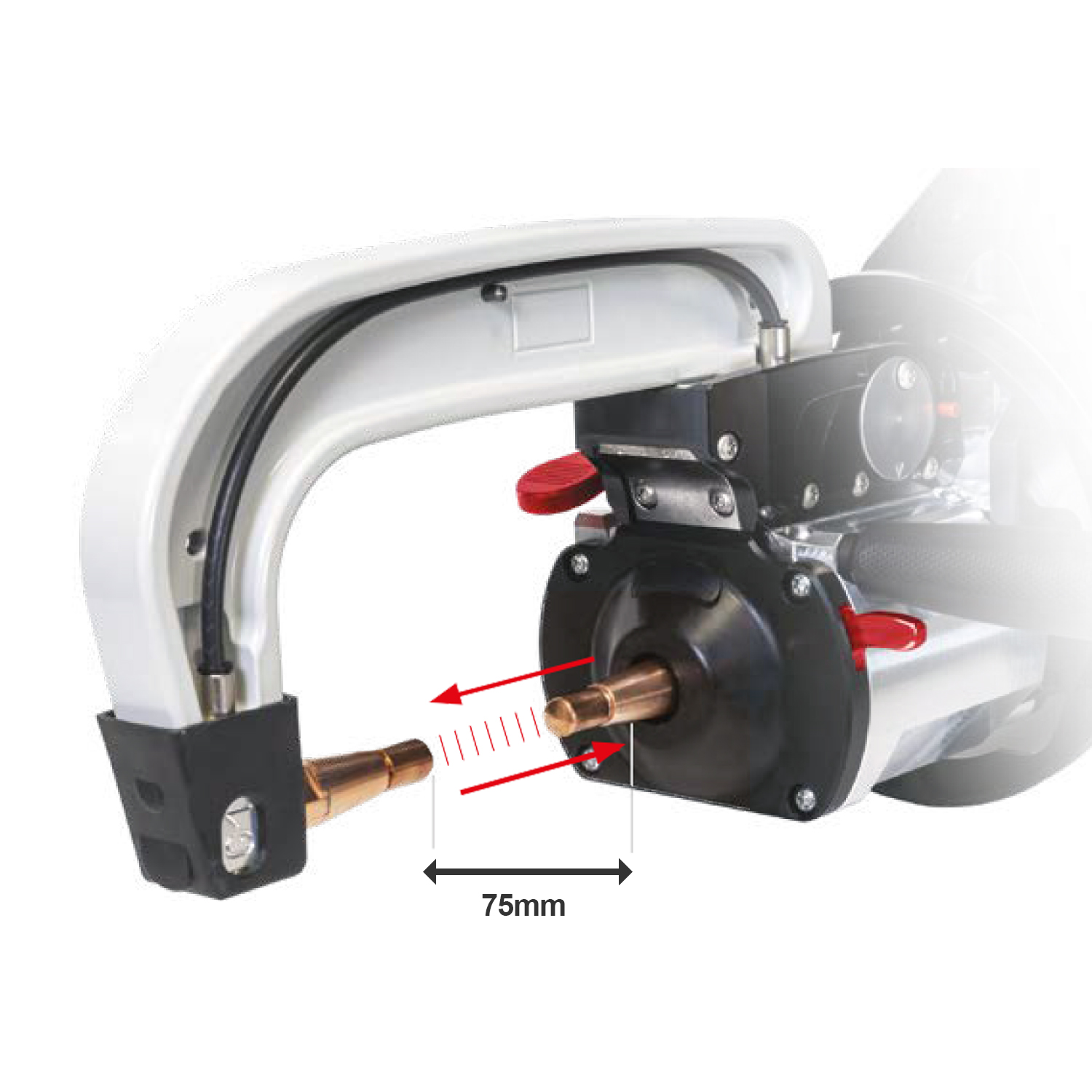

The machine's clamp design offers a maximum clamping force of 550 daN at 8.1 bar, meeting OEM requirements. With its 5-metre harness, the PTI EXPERT provides extended reach for various welding scenarios.

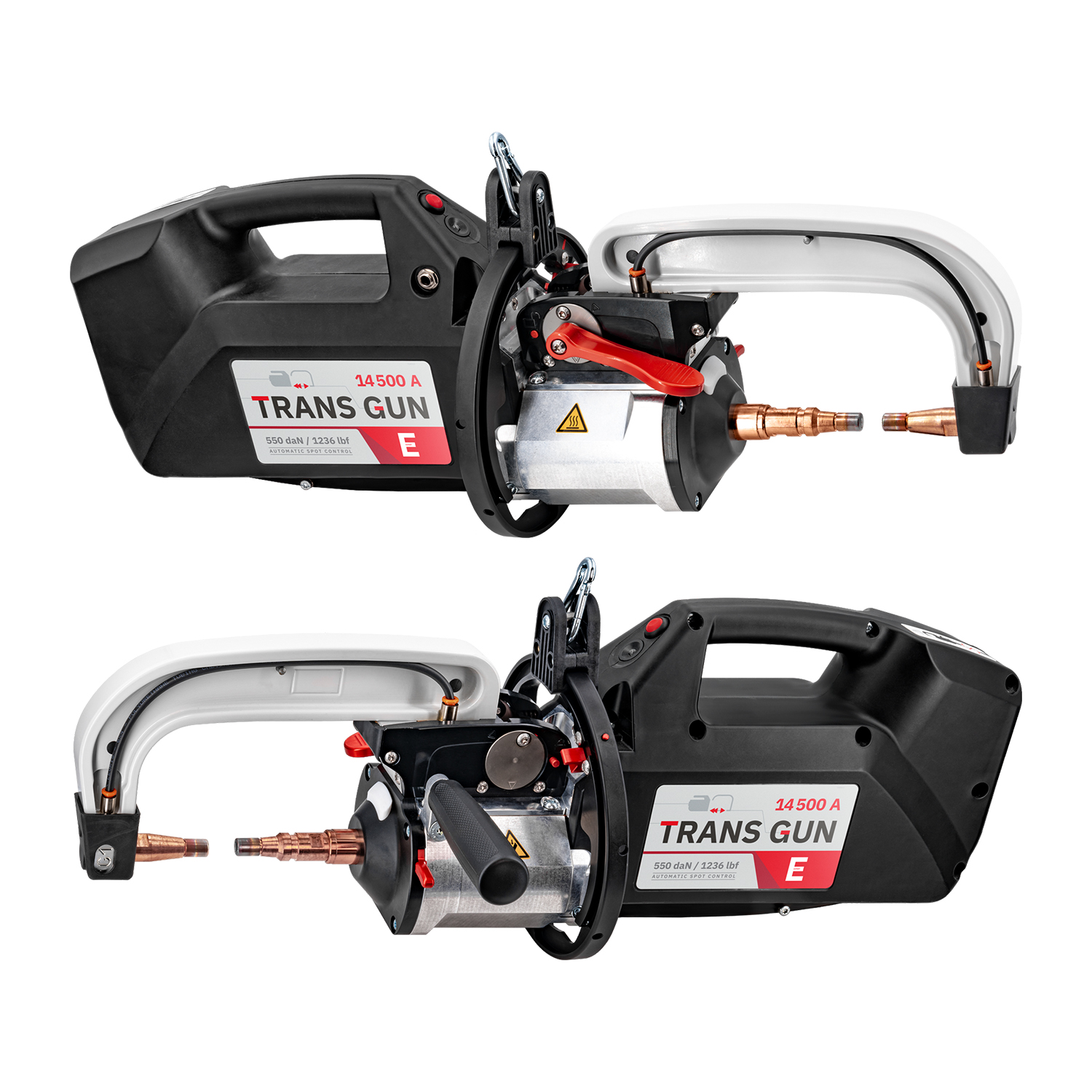

The system features advanced capabilities, including automatic welding parameter detection, a manual over-opening mechanism for enhanced user convenience, and a balancing arm to reduce the weight of the gun. The liquid-cooled clamp has an integrated transformer and can rotate 360° to facilitate welding in difficult-to-access areas.

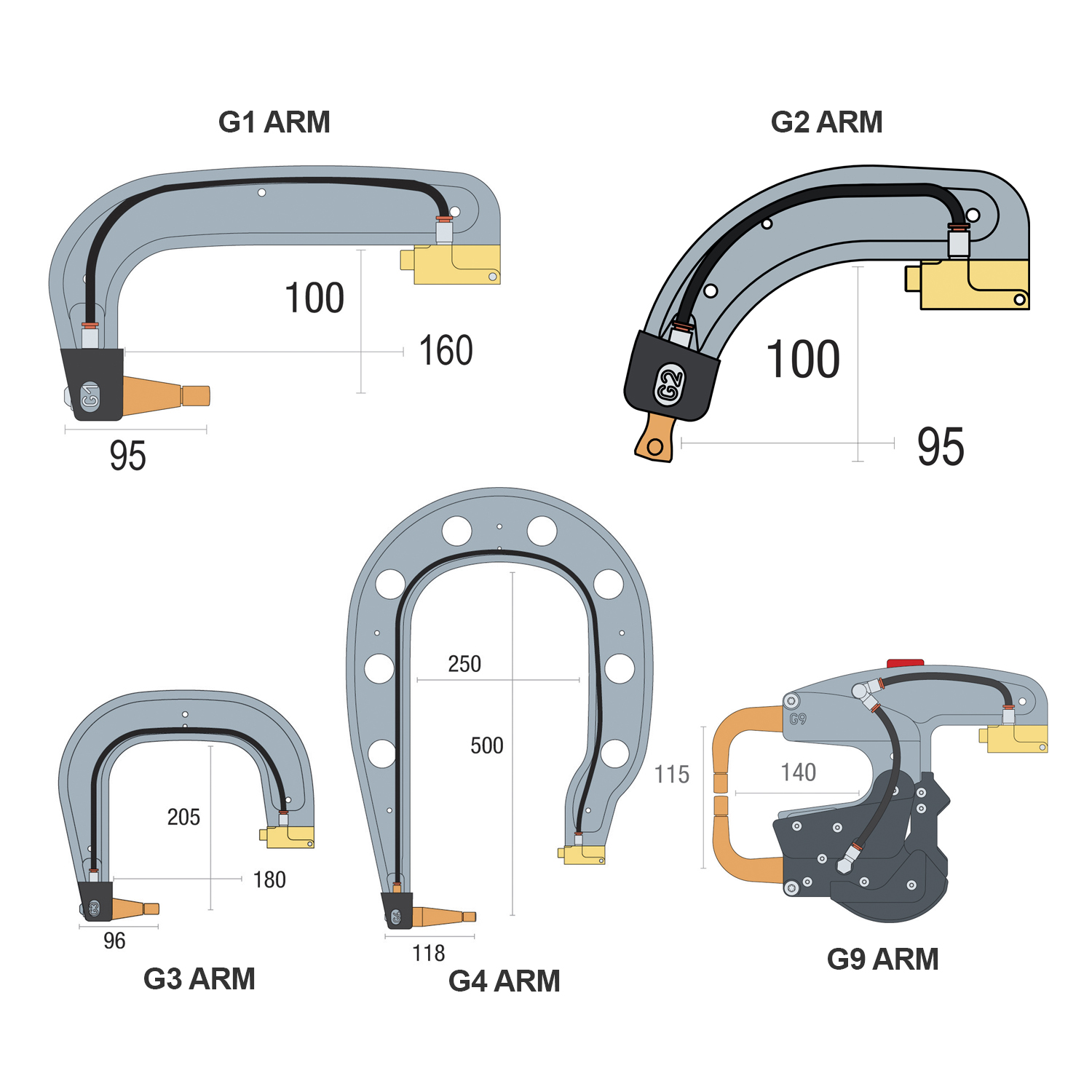

Supplied packaged with G1+G2++G3+G4+G9 arms.
- Inverter technology for precise welding control
- Automatic mode for intelligent welding parameter detection

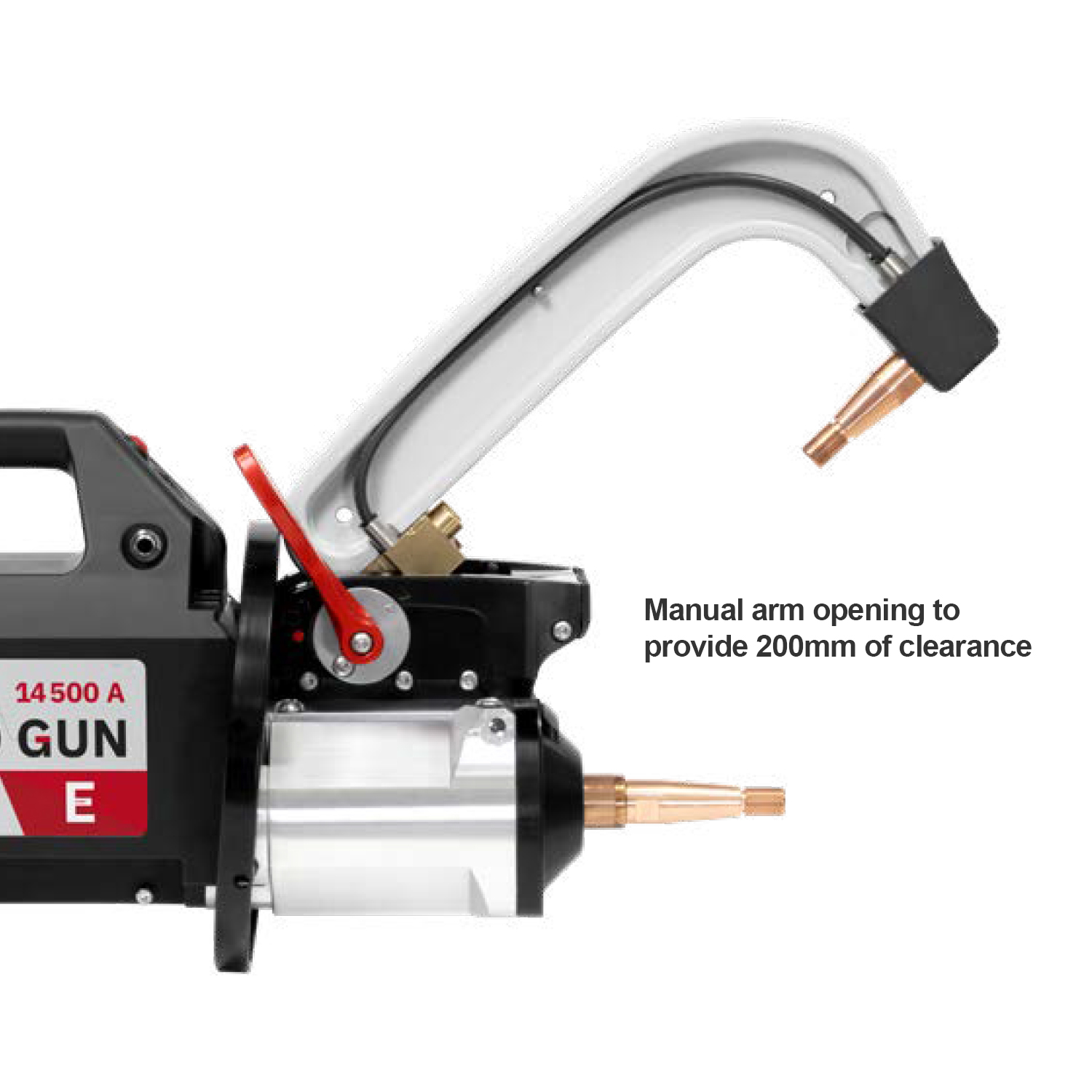

- Manual over-opening mechanism (GYS patent)
- 360° rotating clamp for accessing difficult areas
- Integrated transformer in the gun for reduced power consumption
- Liquid cooling system for extended component life
- Balancing arm to reduce gun weight

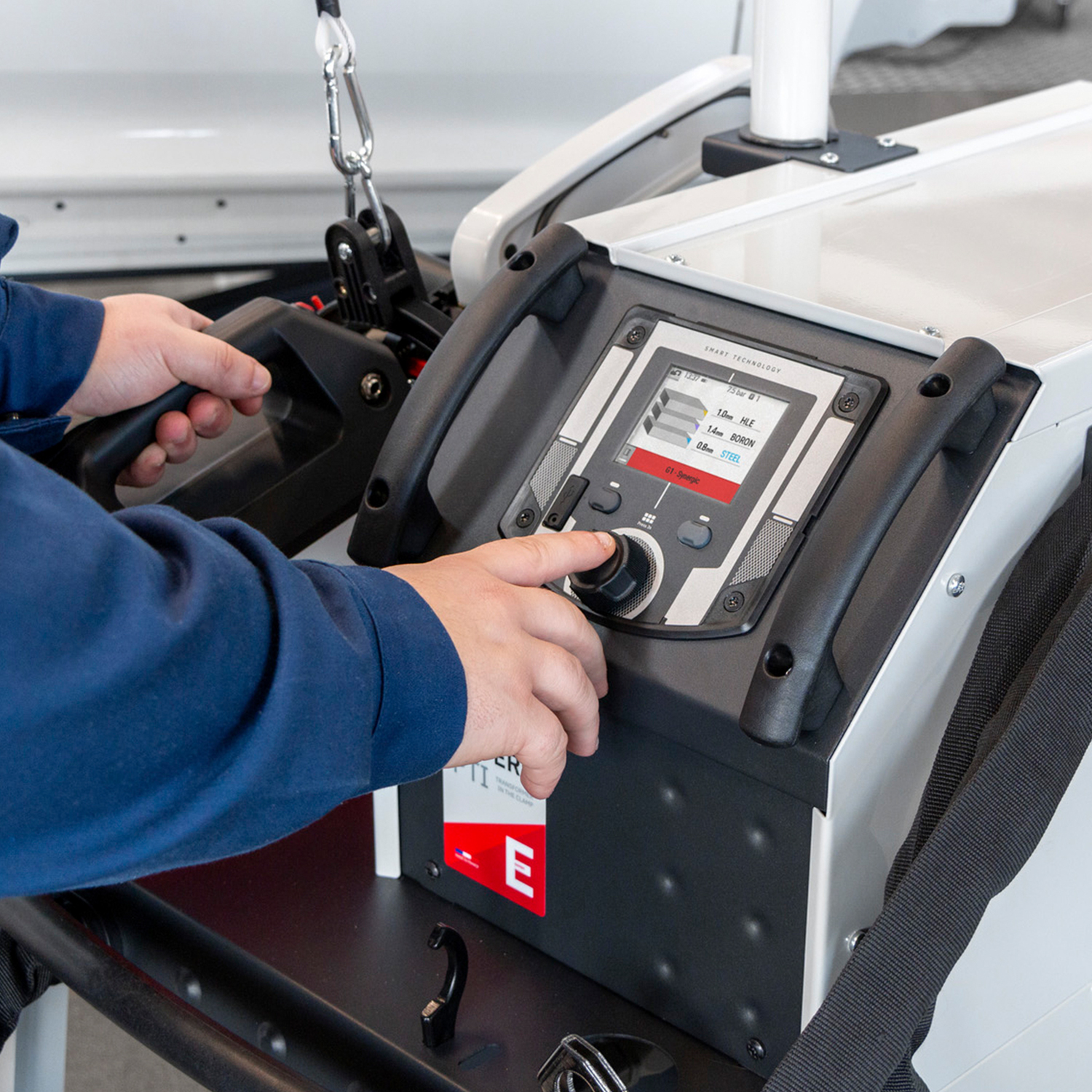

- 3.5" color display for intuitive navigation
- Spot counter for monitoring cap service life
- USB connectivity for data export and software updates
- Power Supply: 3 x 400 V, 50/60 Hz
- Fuse Rating: 25 A (D curve)
- Maximum Spots per Minute: 10
- Maximum Welding Current: 14,500 A
- RMS U0: 7.4 V
- Standard Cables: 2.5+2.0+2.0 m
- Optional Cables: 1.5+3.0 m
- Arm Length: 5 m (Liquid-cooled)

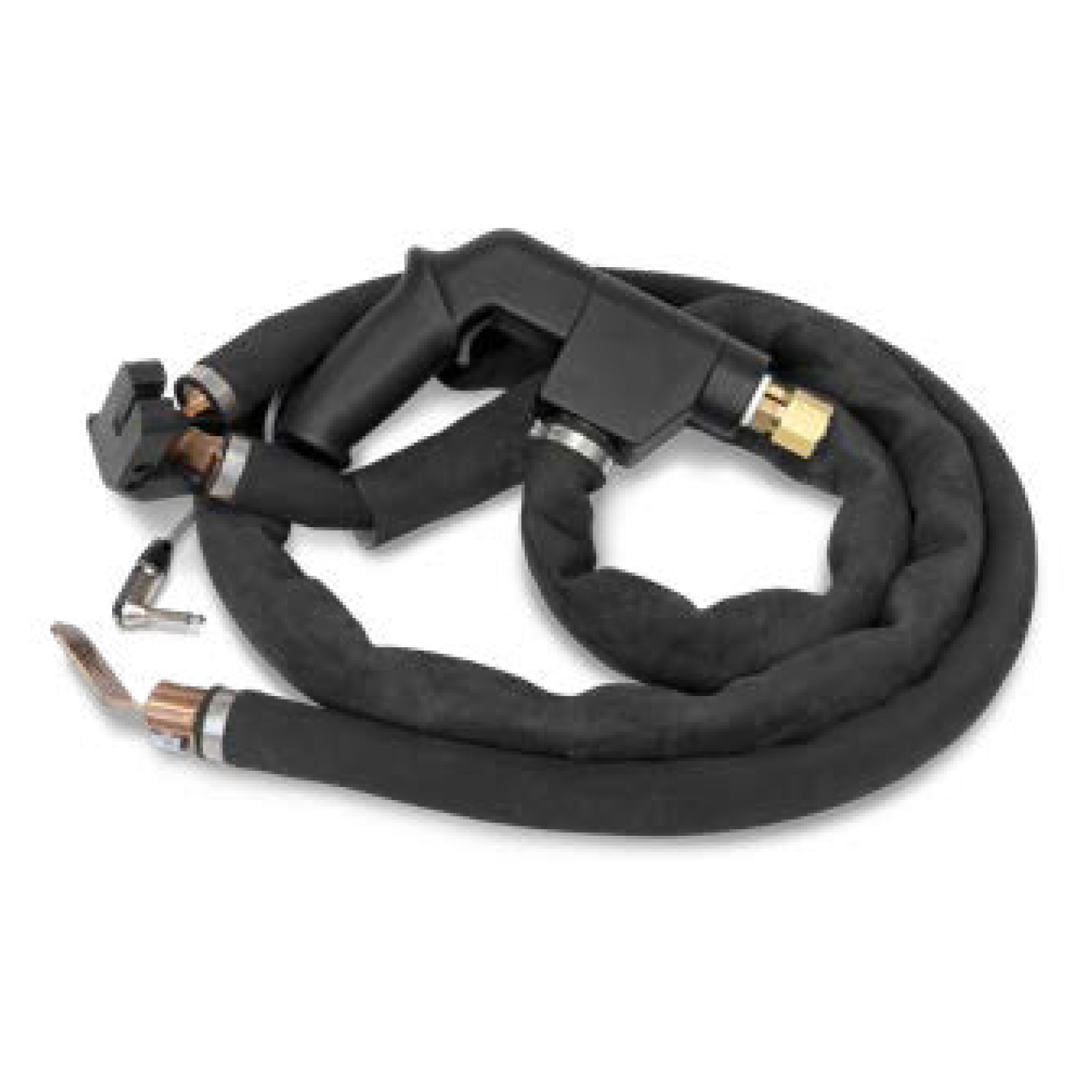

- Gun Cable Length: 1.8 m
- Earth Cable Length: 1 m
- Pneumatic Hose Length: 8 m
- Cooling System: Liquid, 30 L capacity
- Dimensions (L x W x H): 65 x 100 x 230 cm
- Weight: 109 kg
- Packaging Weight: 12.1 kg
