SPANESI MULTI BENCH
Brand: Spanesi Products
Product Details
SPANESI MULTI BENCH
Kit Components
This item contains the following components:
- 1 x LOW MULTIBENCH PLATFORM - LONG
- 1 x KIT OF 4 TRIPOD TROLLEY 3WHEEL H1250 FOR MULTIBENCH
- 1 x CONTROL BOX 400V 50HZ 3PHASE
- 1 x COMPLETE SET OF UNIVERSAL FIXTURE FOR MULTIBENCH WITH
- 1 x KIT OF FINISHING PLATFORMS FOR MULTIBENCH
- 1 x KIT OF SUPPORTS AND CROSSBARS FOR MULTIBENCH COMPELETE
- 1 x MULTIBENCH LIFT CAPACITY 3000K REAR/FRONT
- 1 x KIT OF LOW SUPPORTS WITH CLAMP SND STRRUPS FOR SUV(NO BUFFERS
- 1 x KIT OF HIGH SUPPORTS WITH BUFFERS AND CHAINS
- 1 x RIGHT COMPELETE SLIDING BASE MOD.1313 FOR JIG CROSSBAR
- 1 x LEFT COMPELETE SLIDING BASE MOD.1313 FOR JIG CROSSBAR
- 1 x PULLING COLUMN WITH PNEUMO HYDRAULIC PUMP 450BAR
- 1 x SPECIAL SCREWS KIT FOR JIG COMPELETE WITH SHELVES

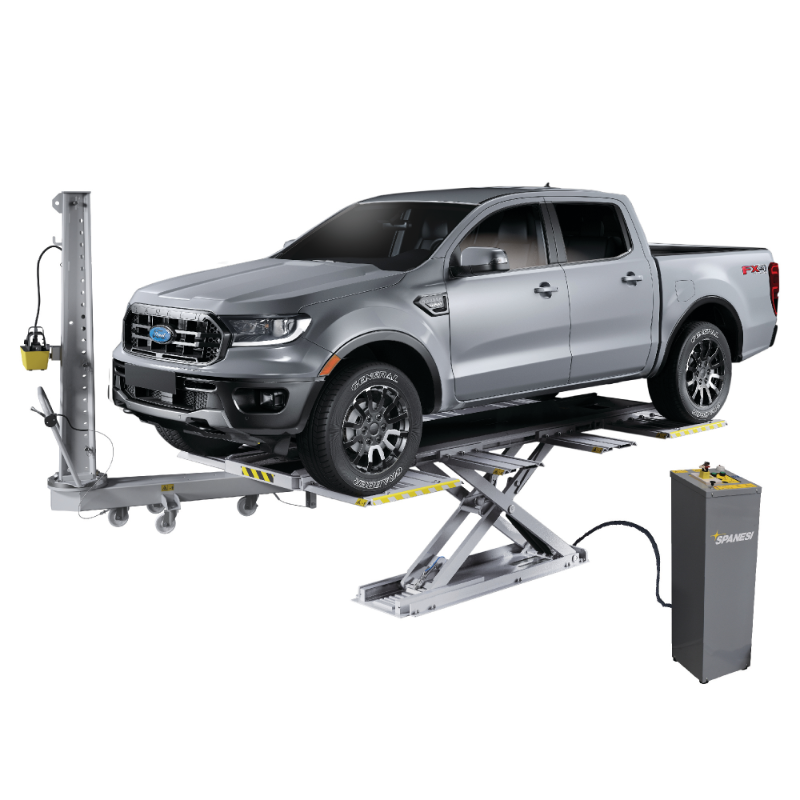

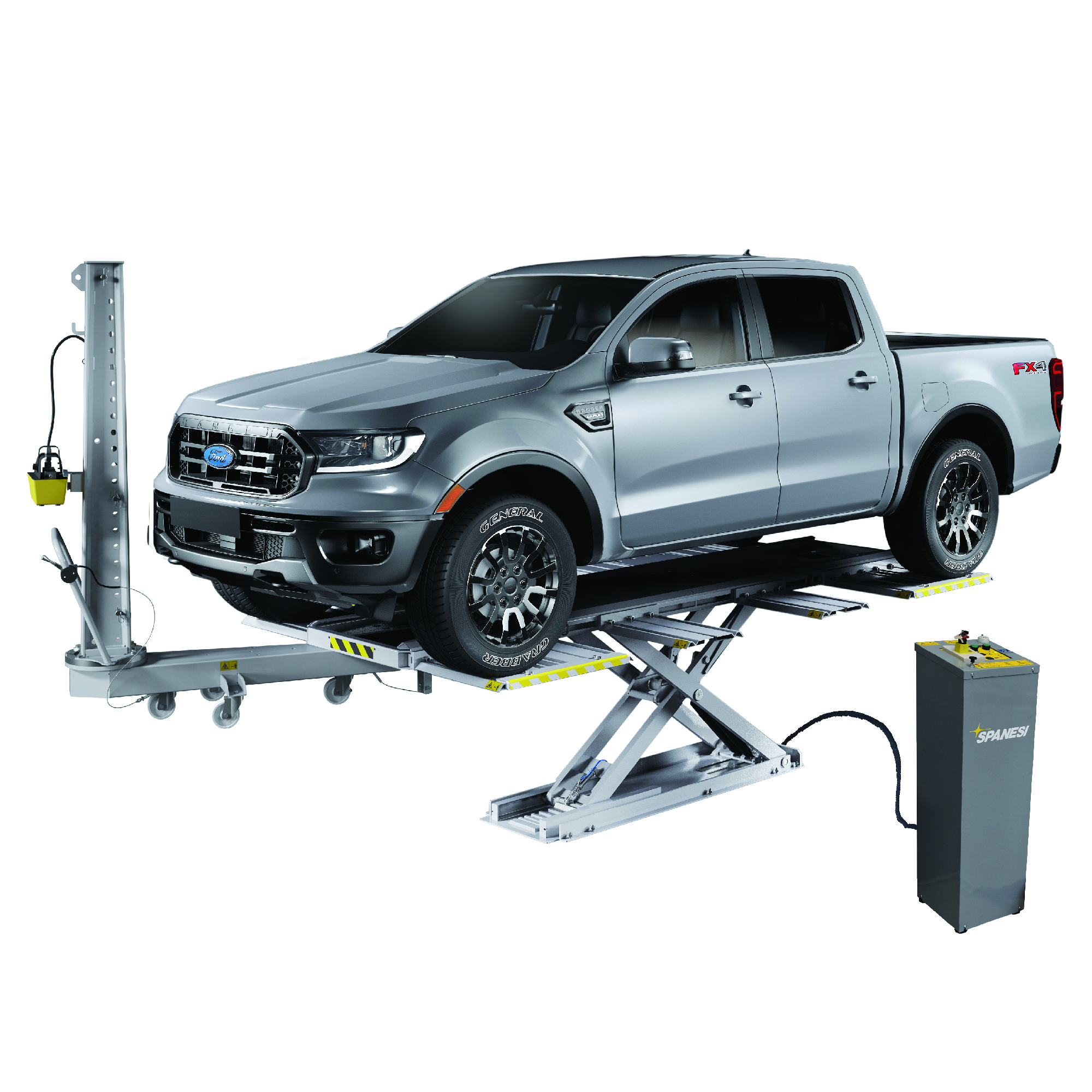

SPANESI MULTIBENCH - Structural Repair Station
Powerful
The Multibench employs an electro-hydraulic lift suitable for lifting most vehicles, with a maximum lifting capacity of 3,000kgs to a height of over 1.5 metres. Technicians have the ability to work on vehicles at a comfortable height during the repair process.
Low-Profile and Small Footprint
Platforms sit flat on the ground to enable vehicles with limited ground clearance to easily drive onto the lift. A small footprint allows facilities of all sizes to place the Multibench in repair bays that cannot accommodate full-size benches.
Diagnostics and Repair
The pulling column provides 10-tonne pulling capacity for serious vehicle straightening, 360º around the vehicle. Combined with the Touch electronic measuring system (optional), the Multibench is a single bay solution to repair vehicle damage.
Specifications:
Voltage: 208/230V
Lifting Capacity: 3000kg
Lifting Height: 1.5m
Lift Time: 45 Seconds
Pulling Force: 10 tonnes
